Partner Gateway Integration

Updated

PlayCamp Partner Gateway relays authentication, webhook conversion, and payment synchronization between your game server and PlayCamp SDK API. This allows you to integrate with PlayCamp while maintaining your existing API specifications.



When to Use This Method

  • Your game server already has its own API specifications that differ from PlayCamp’s standard format
  • Your authentication method differs from PlayCamp’s standard (Bearer Token) — e.g., SHA256 custom signatures
  • You prefer Gateway-polled payment synchronization instead of directly sending payments to PlayCamp
  • You want to minimize changes to your existing systems while integrating PlayCamp

​

Full Flow



Development Tasks

# Task Owner Description
1 Place entry point in game Game Client Boost icon/button
2 Generate auth data Game Server Create signature for Gateway authentication
3 Call Gateway URL Game Client Open browser with signature
4 Webhook receiver endpoint Game Server Receive converted events from Gateway
5 Provide payment query API Game Server API for Gateway to poll payment history

​

Step 1: WebView Entry (via Gateway)

Instead of calling PlayCamp WebView directly, you go through the Partner Gateway URL. The Gateway verifies authentication and redirects to PlayCamp WebView.

​

Entry URL

GET https://{gateway-domain}/api/{partner}/sponsor?usn={userId}&camp_code={campaignId}&custom_data={signature}
Parameter Required Description
usn Yes Game user unique ID
camp_code No PlayCamp campaign ID
custom_data Yes Authentication signature data


Authentication Method

Generate signature data on the game server and pass it to the client.

Typically uses SHA256-based signature + timestamp expiry verification.

  • Signature generated using a pre-shared secret key (sharedKey)
  • Timestamp validity check prevents replay attacks


Response

HTTP Description
302 Auth success → Redirect to PlayCamp WebView
401 Auth failure (signature mismatch, timestamp expired, etc.)

​

Step 2: Webhook Receiver (Gateway → Game Server)

When the user selects a creator in WebView, events flow from PlayCamp → Gateway → Game Server. The Gateway converts PlayCamp’s standard format into a format your game server can process.

​

Event Types

PlayCamp Event Delivered to Game Server
sponsor.created Boost registered (1 event)
sponsor.ended Boost removed (1 event)
sponsor.changed Boost removed + Boost registered (split into 2 events)

​

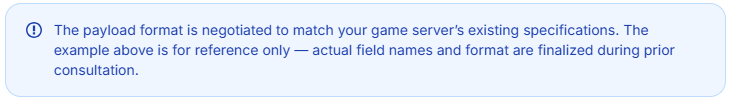

Game Server Receives (Example)

{
  "events": [
    {
      "custom_data": "100001|1700000000|a1b2c3d4...",
      "usn": 100001,
      "creator_usn": 17324966,
      "event": "sponsor.created",
      "timestamp": 1741588200
    }
  ]
}


Game Server Response

Return HTTP 200 with a result on success.

{ "result": "OK" }

​

callbackId Usage

The custom_data passed during WebView entry is stored as callbackId in PlayCamp. The same value is included in webhook events, so your game server can match the original entry request with webhook events.

​

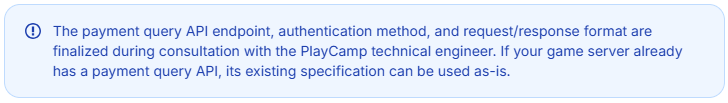

Step 3: Payment Sync (Gateway Polls)

Instead of your game server sending payments directly to PlayCamp, the Gateway periodically polls your game server’s payment API and bulk-registers them with PlayCamp.Provide an API on your game server that returns payment history by period, and the Gateway will periodically poll it to automatically register payments with PlayCamp.

  • Game server’s role: Provide a query API that returns payment history by date range
  • Gateway’s role: Automatically converts game server responses to PlayCamp Bulk Payment API format and sends them
  • Deduplication: Automatic deduplication on PlayCamp’s side based on transaction ID
  • Auto-retry: Progressive retry intervals on transfer failure



Step 4: Settlement

Monthly settlement is processed based on payment data.

  1. Revenue Close — Payment data aggregated at end of each month
  2. Revenue Reconciliation — Match PlayCamp settlement data with your internal records
  3. Settlement Payment — Payment after reconciliation confirmation
  4. Creator Settlement — PlayCamp distributes revenue to creators

Details: Settlement

​

Security

Segment Authentication
Game Client → Gateway SHA256 signature + timestamp expiry verification
PlayCamp → Gateway (Webhook) HMAC-SHA256 signature verification
Gateway → Game Server (Webhook) Agreed upon in advance (game server’s own verification)
Gateway → Game Server (Payment API) IP whitelist + SHA256 fingerprint
Secret key storage AES-256-GCM encryption

​

Comparison with Direct WebView Integration

Aspect Direct WebView Partner Gateway
Authentication PlayCamp standard (Bearer Token) Can maintain game’s existing method
Webhook format PlayCamp standard JSON Converted to game server format
Payment registration Game server calls API directly Gateway polls and auto-syncs
Game server changes Add PlayCamp API call logic Only provide payment query API

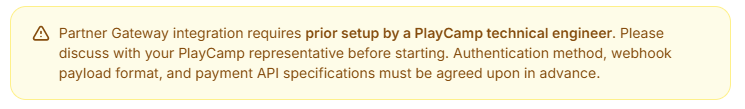

Prior consultation Not required (self-service via docs) Required with PlayCamp technical engineer
