Overview

Updated

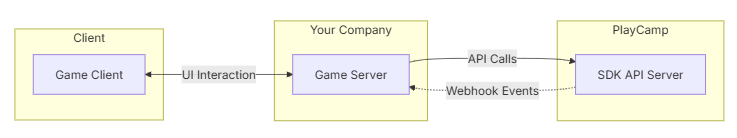

Architecture

PlayCamp SDK API is integrated through the game server.

​



Role Distribution

Component Role
Game Client User interface (creator selection UI, coupon input screen, etc.)
Game Server API calls, business logic processing, Server Key storage
PlayCamp SDK API Data storage, settlement calculation, statistics aggregation, webhook delivery

​

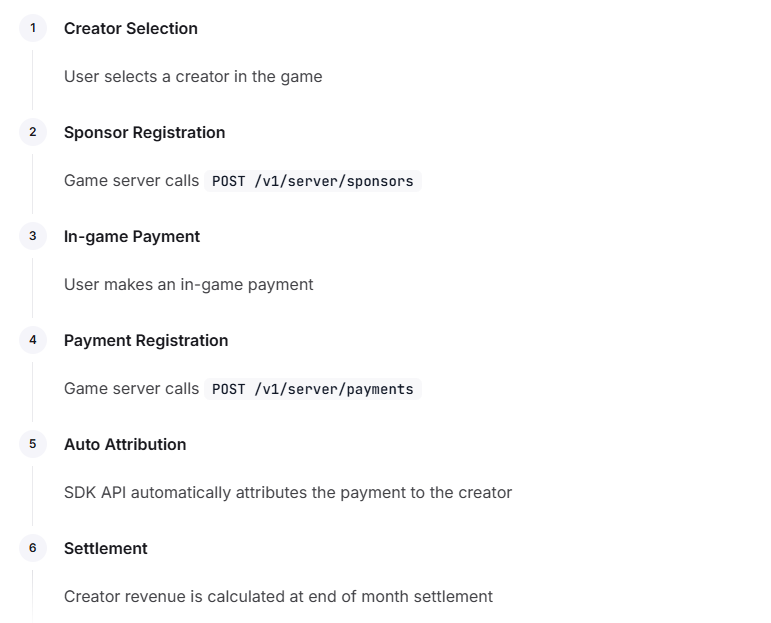

Data Flow Example



Getting Started

​Required Integration APIs

Three Server APIs that must be integrated for campaign operation:

Function API Description
Create Sponsor POST /sponsors User sponsors a creator. Core for payment attribution
Validate Coupon POST /coupons/validate Validate coupon code
Create Payment POST /payments Register in-game payment. Base data for settlement

​

API Key Issuance

Create a project on the PlayCamp platform to receive API keys.

Key Type Purpose Storage Location
Server Key All API calls (read/write) Game server (store securely)
Client Key Query APIs only (read-only) Game client (optional use)

​

Authentication

All API requests use Bearer Token authentication.


Authorization: Bearer {keyId}:{secret}

Example:


Authorization: Bearer ak_server_abc123def456:xyz789secretkey


Server Environments

Environment URL Purpose
Sandbox https://sandbox-sdk-api.playcamp.io Development/Testing
Live https://sdk-api.playcamp.io Production

​

Integration Flow

1. POST /sponsors          → User selects creator (sponsor)
2. POST /coupons/validate  → Validate coupon code
3. POST /payments          → Register when in-game payment occurs

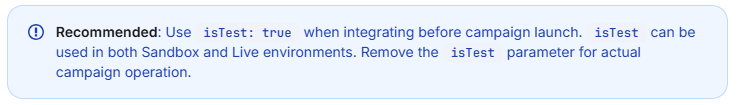

Test Mode

Before campaign launch, use isTest: true parameter to test API integration.

curl -X POST "https://sandbox-sdk-api.playcamp.io/v1/server/payments" \
  -H "Authorization: Bearer ak_server_xxx:secret" \
  -H "Content-Type: application/json" \
  -d '{
    "userId": "test_user",
    "transactionId": "test_txn_001",
    "productId": "gem_pack_100",
    "amount": 9900,
    "currency": "KRW",
    "platform": "Android",
    "distributionType": "MOBILE_STORE",
    "purchasedAt": "2024-01-15T10:30:00.000Z",
    "isTest": true
  }'

Test Mode Features:

  • Request parameter validation is performed identically to production
  • Data is not saved to DB
  • Returns mock response


See Test Mode for more details.
