WebView Integration

Updated

Provide boost and coupon features using PlayCamp’s web-based UI.

​

Overview

WebView is a boost/coupon management web UI provided by PlayCamp. It works in both in-game embedded browsers (WebView) and external browsers. You can provide Creator Boost and coupon features without building custom UI.


Both in-game embedded browsers and external browsers (mobile/PC) are supported. Choose the approach that fits your game environment.



Server API Direct Integration vs WebView

Item Server API Direct Integration WebView
UI Development Game studio must implement Provided by PlayCamp (no additional development)
Integration Difficulty Individual integration per API Only 1 API for OTT issuance
Customization Full freedom Theme color/font customization
Multilingual Game studio handles Auto-supported (Korean/English)
Best For When game UX must be perfectly matched When you want to provide features quickly

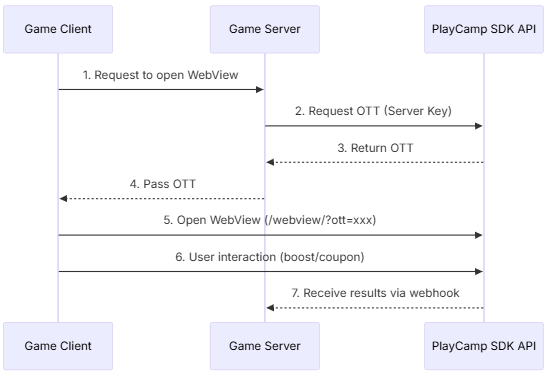

Architecture

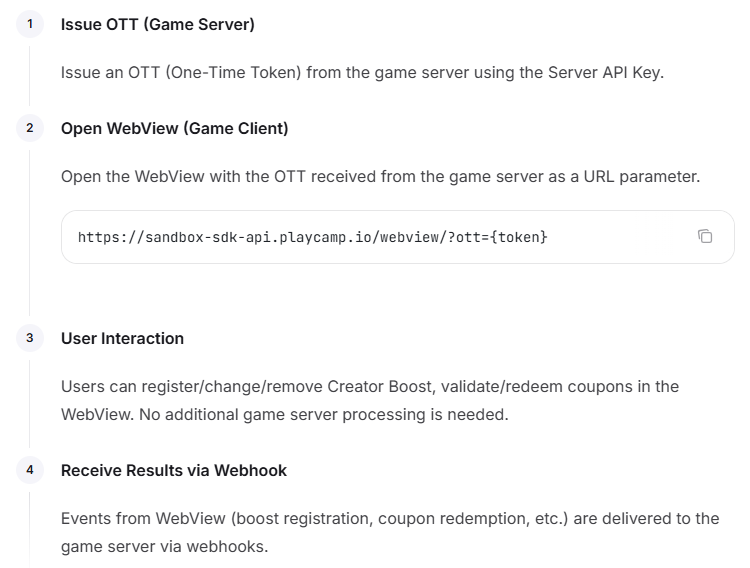

Integration Flow



OTT Issuance API

​Request

curl -X POST "https://sandbox-sdk-api.playcamp.io/v1/server/webview/ott" \
  -H "Authorization: Bearer ak_server_xxx:secret" \
  -H "Content-Type: application/json" \
  -d '{
    "userId": "user_12345"
  }'
const result = await server.webview.createOtt({
  userId: 'user_12345',
  campaignId: 'campaign_123',       // optional
  codeChallenge: 'challenge_value', // optional
  callbackId: 'cb_001',             // optional
  metadata: { key: 'value' },       // optional
});

console.log(result.ott);       // one-time token
console.log(result.expiresAt); // expiry time (ISO 8601)
result, err := server.Webview.CreateOTT(ctx, playcamp.WebviewOttParams{
    UserID:        "user_12345",
    CampaignID:    "campaign_123",       // optional
    CodeChallenge: "challenge_value",    // optional
    CallbackID:    "cb_001",             // optional
    Metadata:      map[string]any{"key": "value"}, // optional
})

fmt.Println(result.OTT)       // one-time token
fmt.Println(result.ExpiresAt) // expiry time



Parameters

Field Type Required Description
userId string Yes In-game user identifier
campaignId string - Scope WebView to a specific campaign
codeChallenge string - PKCE S256 challenge (Base64URL-encoded SHA256, 43-128 chars)

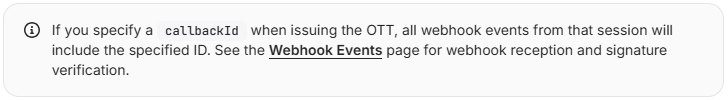

callbackId string - Webhook tracking ID
metadata object - Additional metadata (stored in session)

​

Response (201 Created)

{
  "data": {
    "ott": "a1b2c3d4e5f6...64char_hex",
    "expiresIn": 60
  }
}
Field Description
ott One-Time Token (64-character hex string)
expiresIn Time until expiry (seconds, default 60)


WebView URL Configuration

​Base URL

Environment URL
Sandbox https://sandbox-sdk-api.playcamp.io/webview/?ott={token}
Live https://sdk-api.playcamp.io/webview/?ott={token}

​

Option Parameters

Parameter Description Example
lang Language setting (ko, en) ?ott=xxx&lang=en
tabs Limit displayed tabs (comma-separated) ?ott=xxx&tabs=sponsor,coupon



tabs options

Value Description
sponsor Boost management tab
coupon Coupon redemption tab
campaigns Campaign list tab
creators Creator search tab



Theme Customization

Customize WebView colors and fonts via URL parameters.

Parameter Description Default Example
primaryColor Button/accent color (hex) Game theme color primaryColor=FF6B35
bgColor Background color (hex) Dark theme bgColor=1a1a2e
textColor Text color (hex) Light text textColor=ffffff
fontFamily Font family System default fontFamily=Noto Sans KR

Enter hex color values without #. Example: primaryColor=FF6B35



Full example

/webview/?ott=xxx&lang=ko&tabs=sponsor,coupon&primaryColor=FF6B35&bgColor=1a1a2e&textColor=ffffff

​

Key Features

​Boost Management

Users can search for creators and register/change/remove boosts in the WebView.

  • Creator Search: Search by creator key or name (real-time autocomplete)
  • Register Boost: Register boost for selected creator
  • Change Boost: Change to a different creator (30-day cooldown applies)
  • Remove Boost: Remove current boost
Boost screen - Mobile

Boost screen - PC

Creator Key Prefill

Include a creator key in the URL to prefill the search form:


/webview/?ott=xxx#sponsor?creatorKey=ABC12

​Coupon Redemption

Coupons are redeemed in 2 steps: Validate → Redeem

  • Code Input: 5-50 characters, auto uppercase conversion
  • Validation: Check validity and preview reward items
  • Redemption: Confirm to finalize (returns usage ID)
Coupon screen - Mobile

Coupon screen - PC

​

Webhook Event Integration

Actions performed by users in the WebView are delivered to the game server via webhooks.

​

Events from WebView

Event Description Key data fields
sponsor.created Boost registered userId, campaignId, creatorKey
sponsor.ended Boost removed userId, campaignId, creatorKey
coupon.redeemed Coupon redeemed couponCode, userId, usageId, reward

​

Webhook Payload Examples

sponsor.created

{
  "events": [
    {
      "event": "sponsor.created",
      "timestamp": "2024-01-15T10:30:00.000Z",
      "callbackId": "cb_001",
      "data": {
        "userId": "user_12345",
        "campaignId": "campaign_001",
        "creatorKey": "ABC12"
      }
    }
  ]
}

coupon.redeemed


{
  "events": [
    {
      "event": "coupon.redeemed",
      "timestamp": "2024-01-15T10:31:00.000Z",
      "callbackId": "cb_001",
      "data": {
        "couponCode": "CREATOR-ABC12-001",
        "userId": "user_12345",
        "usageId": 5678,
        "reward": [{ "itemId": "gem", "itemQuantity": 100 }]
      }
    }
  ]
}


Security

​OTT (One-Time Token)

  • Single-use: OTT is deleted immediately upon session exchange. Cannot be reused
  • 60-second TTL: Must be used within 60 seconds of issuance
  • Server-issued only: Requires Server API Key, so can only be issued from the game server

​

Session Management

  • Session Cookie: httpOnly, SameSite=strict settings prevent XSS/CSRF attacks
  • Session TTL: 10 minutes (auto-extended based on last API call)
  • Single Session: Only one session per user. Creating a new session automatically invalidates the existing one

​

CSRF Protection

CSRF tokens are automatically included in state-changing requests (POST/PUT/DELETE) within the WebView. No additional handling required from the game studio.

​

PKCE (Optional)

For additional security in app environments, you can use PKCE (Proof Key for Code Exchange).

import crypto from 'crypto';

// 1. Generate codes (game server)
const codeVerifier = crypto.randomBytes(32).toString('base64url');
const codeChallenge = crypto
  .createHash('sha256')
  .update(codeVerifier)
  .digest('base64url');

// 2. Include codeChallenge when issuing OTT
const { ott } = await server.webview.createOtt({
  userId: 'user_12345',
  codeChallenge,
});

// 3. Include codeVerifier in WebView URL
const url = `https://sandbox-sdk-api.playcamp.io/webview/?ott=${ott}&code_verifier=${codeVerifier}`;


FAQ

What happens when the session expires?

A reconnection prompt is displayed in the WebView. To continue, the user needs a new OTT issued from the game server to reopen the WebView.



What is campaignId scoping?

When you specify a campaignId during OTT issuance, the entire WebView is scoped to that campaign:

  • Only creators from that campaign are shown for boosting
  • Campaign info is shown instead of campaign list
  • Only creators participating in that campaign are searchable


How is multilingual support handled?

  • Default: Auto-detected from browser language settings (Korean/English)
  • URL parameter: ?lang=ko or ?lang=en
  • Language settings changed by the user are stored in the browser and persist on next visit

​

Can I pre-issue OTTs?

Not recommended. OTTs have a 60-second TTL, so issue them when the user requests to open the WebView.

​

Can payments be made in the WebView?

No. The WebView only provides boost and coupon features. Payment registration must be done by calling the Server API directly from the game server.

​

What happens with simultaneous access from multiple devices?

Only one session per user is allowed. Opening the WebView on a new device automatically invalidates the previous device’s session, and a session expiry notice is displayed on the previous device.
